Detail Enlargement

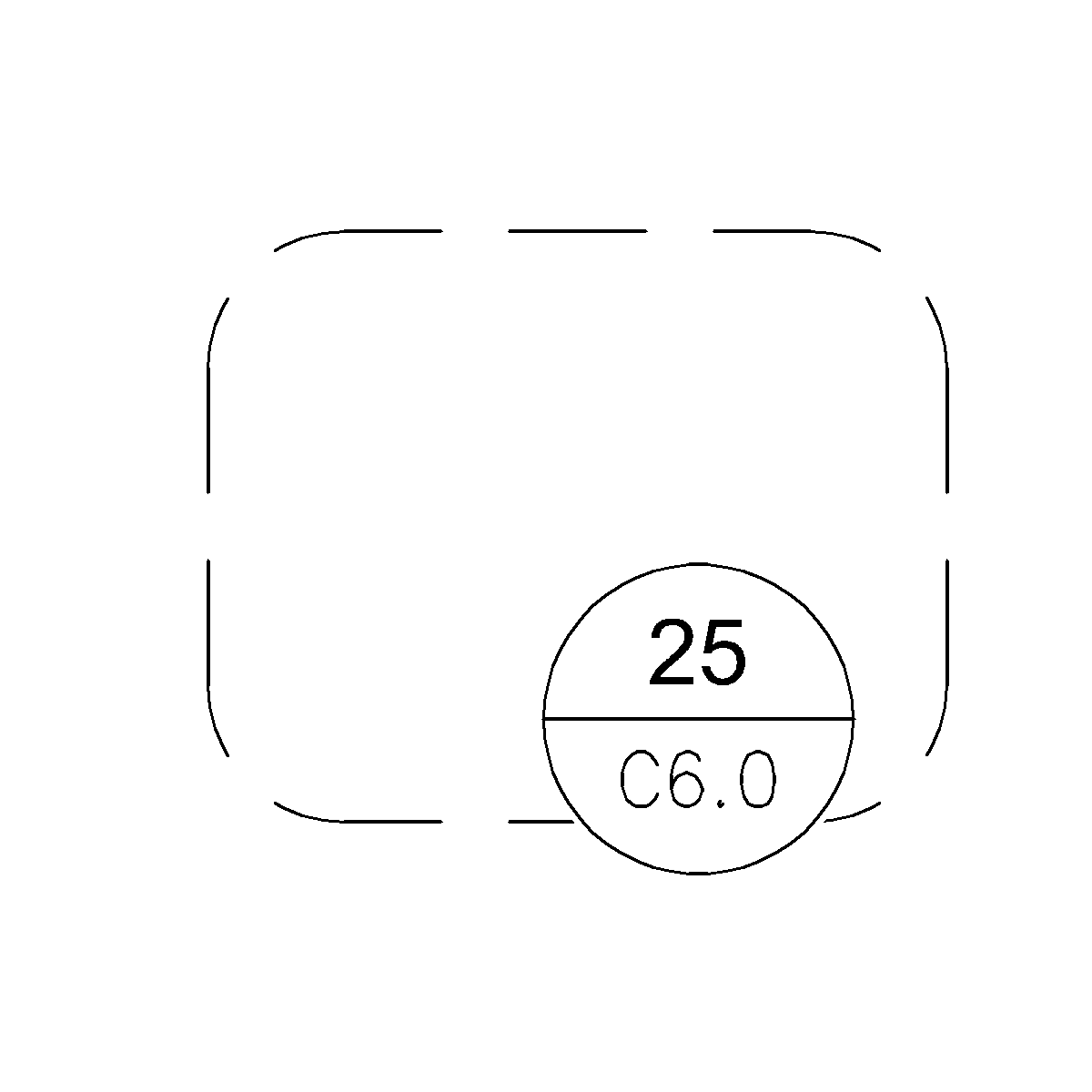

AutoCAD Dynamic block to callout an enlargement detail.
The block can stretch in the horizontal and vertical direction to enclose the area to be detailed.
The visibility grip toggles detail reference on or off.
The detail reference can be positioned anywhere on the box.
The block is annotative and the values are controlled by attributes. The block can be used in both paper and model spaces.
See the video below for a demonstration.
Payment can be made by credit card or PayPal.
Please note: all purchases are non-refundable.
